Anti Slip Rubber Flooring Fish Bone black color

HOME / PRODUCTS / Anti Slip Rubber Flooring Fish Bone black color

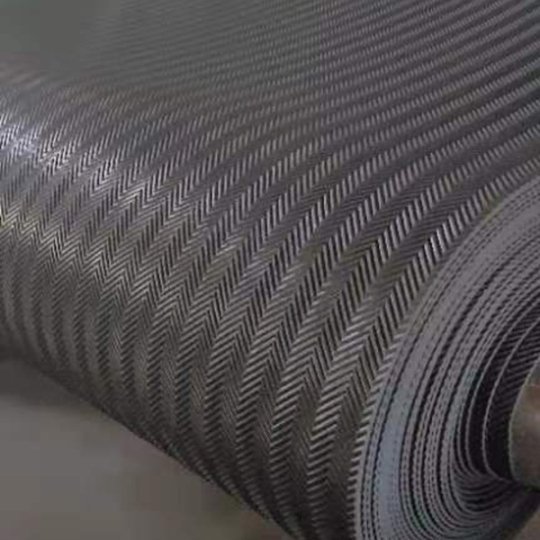

Anti Slip Rubber Flooring Fish Bone black color

Anti Slip Rubber Flooring Fish Bone black color

Fishbone mat boasts a dedicated directional anti-slip design. Compared with multi-way diamond checker matting, its continuous chevron/V-shaped ridges efficiently divert water, oil and other liquids, and deliver reliable forward and backward grip. It is the optimal choice for sites with regular linear walking or rolling motion.

• Fishbone pattern
• Recycle rubber
• 3-8mm Thickness
• 0.5-1.5m Width
• 10-20m Length per roll
• Customized size available

(0) Reviews

810x540 Fishbone rubber anti slip mat
810x540 Chevron pattern rubber flooring roll
Fishbone pattern
  • OVERVIEW
  • FEATURES
  • SPECIFICATIONS
  • PACKAGE
  • FAQS

Fishbone rubber mat, alternatively referred to as herringbone or chevron flooring, is a custom-engineered anti-slip floor material tailored for high-traffic zones with linear movement. It delivers three core advantages: guided directional traction, fast liquid drainage, and long-lasting standing comfort.

Differentiated from omnidirectional diamond/checker rubber matting, its continuous V-shaped arrow ridges divert spills clear of foot and wheel contact zones, while maximizing friction for forward-and-backward travel. This unique structure renders it perfectly suited for corridors, ramps, and dedicated traffic lanes with consistent linear pedestrian or machinery flow.

Suitable Places

Warehouses & Factories: Assembly lines, packing zones, factory walkways

Commercial Spaces: Entrances, ramps, hallways, stair treads

Food Processing Plants: Kitchens, washdown & production areas

Gym & Recreation: Cardio areas, pool decks, locker rooms

Farms & Stables: Livestock paths, milking rooms, tractor aisles

Marine Fields: Boat decks, marina walkways, docks


Product Highlights:

• Precision Engineered Herringbone ProfilePurpose-built V-shaped ridges maximize secure traction for linear back-and-forth travel, effectively boosting slip protection along factory walkways, long corridors and ramps.

• Efficient Liquid & Debris Drainage ChannelsSloped chevron grooves rapidly divert water, industrial oils and scattered waste sideways away from contact surfaces, eliminating hydroplaning risks on wet or contaminated floors.

• Built-In Traffic Direction GuidanceThe consistent fishbone layout visually guides pedestrian and wheeled cart movement, streamlining traffic order and space management in busy high-footfall zones.

• Reliable All-Condition Anti-Slip PerformanceMaintains consistent high friction grip even when exposed to water, machinery oils and light lubricating greases, preventing workplace slip accidents.

• Safety Tapered Beveled EdgesStandardized sloped edge design removes trip hazards; it also enables smooth, gap-free connection when joining multiple mat rolls together.

• Reinforced Long-Lasting ConstructionCustom rubber compound blended with strengthening additives delivers outstanding tear resistance and stable dimensions, resisting shrinkage or deformation under heavy loads.

• Heavy-Duty Abrasion Resistant Top LayerWithstands constant foot traffic and rolling equipment wear. The surface pattern retains its original texture without fading or deterioration over long-term heavy use.

Material
Material

Recycled rubber

770x480 fishbone rubber mat-3
770x480 fishbone rubber mat-3

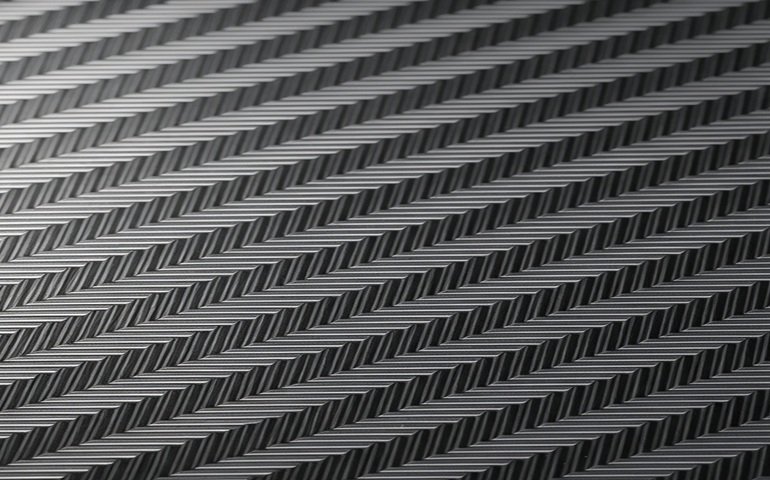

Details
Details

  • Material

    Recycle Rubber

  • Thickness

    3mm~8mm

  • Width

    0.5m~1.5m

  • Roll Length

    10m~20m

  • Hardness

    65 ± 5 Shore A

  • Tensile Strength

    3 MPa

  • Elongation

    ≥ 200%

Standard Pallet Package
Standard Pallet Package

Each roll is individually wrapped in a clear plastic film to prevent the surfaces from sticking together during storage and transport.

Container Loading
Container Loading

Each pallet is packaged with protective corners, plastic wrap, a wooden top board, and tape, and is clearly labeled with the product name, specifications, and quantity.

Where is this mat widely applied?

It is best suited for warehouse lanes, factory walkways, food plant corridors, loading docks, gym tracks and marina paths — all spaces with steady linear foot traffic and frequent liquid spills.

How should I clean and maintain this mat?

Daily sweeping plus mopping with neutral detergent meets regular cleaning demands. For deep wash, use pressure washers below 1500 PSI with fan nozzles. Do not use steam cleaners or harsh chemical strippers.

Can it resist oils and chemicals?

The rubber material can withstand regular factory oils, grease, alkalis and mild acids. But extended contact with pure strong solvents or concentrated acids will damage the mat.
