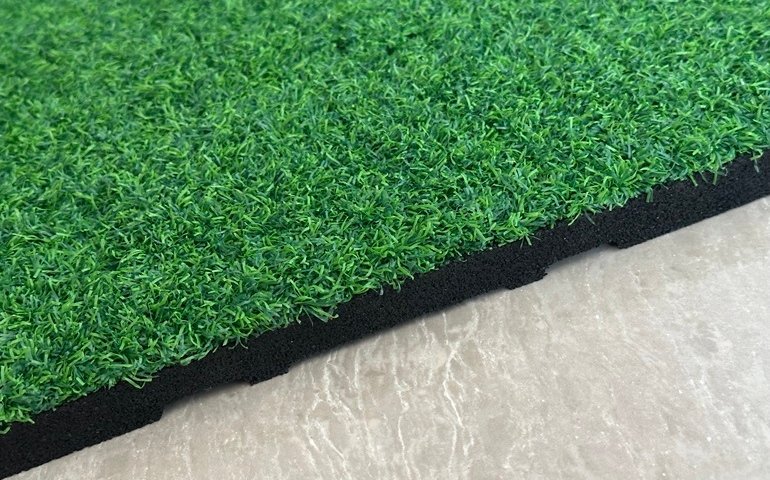

Artificial Turf Topped Connector Tile is designed for functional training areas and sled training tracks, combining a durable artificial turf surface with a high-density rubber base. Featuring a glue-free connector system, these tiles offer easy DIY installation, quick reconfiguration, and reusable performance. The laminated 12mm curved artificial turf surface enhances traction, while the waffle-pattern rubber base improves shock absorption and stability during intense workouts.
• Recycled rubber & PE & SBR with PU glue
• 50cm x 50cm (Approx. 20" x 20") dimensions
• 1m x 1m (Approx. 40" x 40") dimensions
• 12mm + 15mm Thickness = Light-traffic residential areas
• 12mm + 20mm & 12mm + 25mm Thickness = Medium-traffic commercial areas
• Available styles: Black, Grey, Dark Blue, Light Blue, Mixed Green
Artificial Turf Topped Connector Tile is a professional flooring solution designed for functional training zones, sled tracks, and dynamic fitness environments. Combining a realistic 12mm curved artificial turf surface with a high-density rubber base, this tile delivers excellent traction, stability, and long-lasting durability.

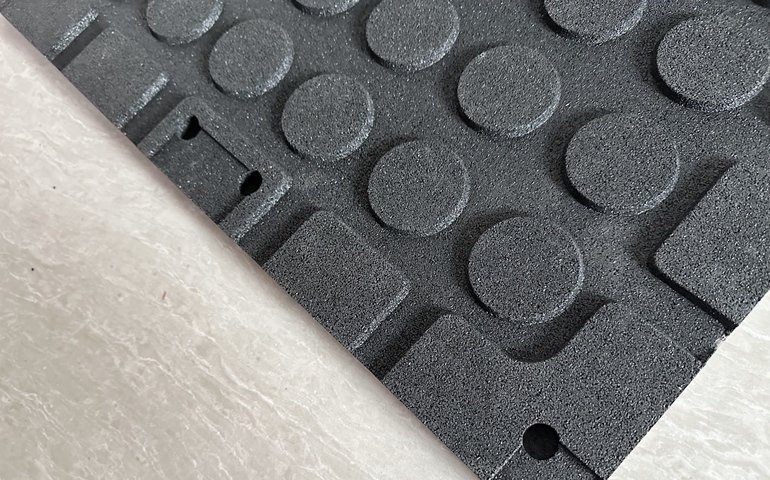

The special waffle-pattern backing creates an air-cavity structure that enhances shock absorption and improves underfoot comfort during high-intensity workouts. Instead of using glue to bond the turf and rubber layers, the artificial turf is fused with the rubber base during the vulcanization process, providing stronger adhesion, eliminating glue-related odors, and preventing separation over time.
The connector-based assembly system allows tiles to be securely joined with square connectors, enabling quick DIY installation, easy removal, and flexible reconfiguration without adhesives.
SPEC. for Artificial Turf:
Pile height - Approx. 12 mm
Density - 63,000 stitches/m2
Gauge (stitch distance) - 3/16 inch
Yarn Dtex - 5,000
Suitable applications include:
- Functional training areas
- Sled push and sled pull tracks
- Commercial gyms
- Fitness centers
- Strength training zones
- Personal training studios
- Home gyms
Product Highlights:
• Realistic Grass-Like Surface
The 12mm artificial turf top layer provides a natural grass appearance while delivering reliable traction for functional workouts and sled training.
• Enhanced Shock Absorption with Waffle Backing
The air-cavity waffle design improves cushioning performance, helping absorb impact and creating a more comfortable training surface.
• Strong Fused Turf Construction
The turf layer is fused with the rubber base through a vulcanization process instead of glue bonding, improving durability and eliminating glue-related odors.
• Loose Interlocking Connector System
Square connectors allow fast, tool-free assembly, easy removal, and flexible floor layout changes without adhesives.
• Stable Protective Rubber Base
The high-density rubber base provides excellent stability, protects the underlying waterproof membrane, and supports heavy workout activities.
• Easy Cleaning & Maintenance
The dirt-resistant turf surface is simple to maintain with regular sweeping or rinsing with a garden hose.
Size
50x50cm and 1x1m
Base Thickness
15mm, 20mm, 25mm
Yarn Type
Curved Pile
Pile Height
Approx. 12mm
Yarn Dtex
5,000 D
Gauge
3/16 inch
Density for Pile
63,000 stitches/m2
Color
Mixed Green, Black, Red, Yellow, Grey, Dark Grey, Blue, Dark Blue
Material
Recycle rubber & PE & SBR with PU glue
Size tolerance
+/- 1%
Each pallet is packaged with protective corners, plastic wrap, a wooden top board, and tape, and is clearly labeled with the product name, specifications, and quantity.
For secure container loading, we use protective airbags and straps to prevent movement and damage, ensuring your goods arrive in perfect condition.
What is Artificial Turf Topped Connector Tile?
Artificial Turf Topped Connector Tile is a modular gym flooring solution that combines a curved artificial turf surface with a high-density rubber base for functional training and sled tracks.
Does this connector tile require glue for installation?
No. The connector-based assembly system allows glue-free installation using square connectors, making the tiles easy to install, remove, and reuse.
What materials are used for this turf connector tile?
It is made from recycled rubber, PE, and SBR bonded with PU glue.
How is the artificial turf attached to the rubber base?
The artificial turf is fused with the rubber base during the vulcanization process, creating a durable connection without glue bonding.
What is the thickness of the artificial turf layer?
The artificial turf has an approximate pile height of 12mm.
What sizes are available?
The tile is available in 50cm x 50cm and 1m x 1m dimensions.
What thickness options are available?
Available options include 12mm + 15mm for light-traffic residential areas and 12mm + 20mm or 12mm + 25mm for medium-traffic commercial areas.
How does the waffle backing improve performance?
The waffle-pattern backing creates air cavities that enhance shock absorption, improve comfort, and provide better support during intense movements.
What colors are available for this product?
Five styles are available: Black, Grey, Dark Blue, Light Blue, and Mixed Green.
Where can Artificial Turf Topped Connector Tile be used?
It is suitable for functional training areas, sled tracks, gyms, fitness centers, personal training studios, and home gyms.
