A smart solution for modern fitness environments. Thanks to glue-free installation, these tiles allow for easy DIY setup and repeated reuse—offering both practicality and long-term durability. They are an excellent fit for free weight zones, functional training hubs, boutique gyms, and personal training studios, while also standing out as the preferred option for home gyms.
• Recycled rubber and EPDM bonded with PU glue
• 50cm x 50cm (Approx. 20" x 20")
• 20mm – Suitable for light-traffic residential areas
• 25mm – Ideal for medium-traffic commercial spaces
• 30mm – Designed for heavy-duty or safety-critical zones

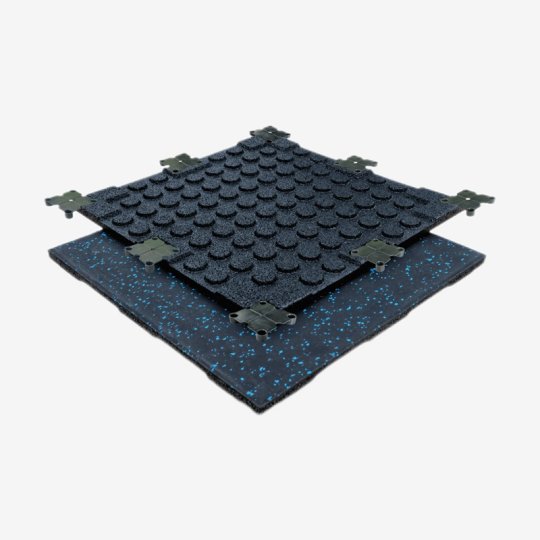

Our Connector Tile offers a new approach to rubber flooring for contemporary gym environments. Installation requires no adhesive—square connectors are used to firmly lock each tile together. This makes the system ideal for most gym spaces, supporting easy DIY assembly, layout changes, and disassembly when needed.
The tiles are manufactured from recycled rubber and EPDM, with the EPDM proportion varying according to the chosen colour pattern. As an upgraded version of laminated rubber flooring, they retain a two-layer construction: a durable wear-resistant top layer bonded to a rubber granule base. The distinctive waffle-shaped back improves shock absorption, while raised humps on the surface help keep equipment wiring neatly concealed beneath the tiles.

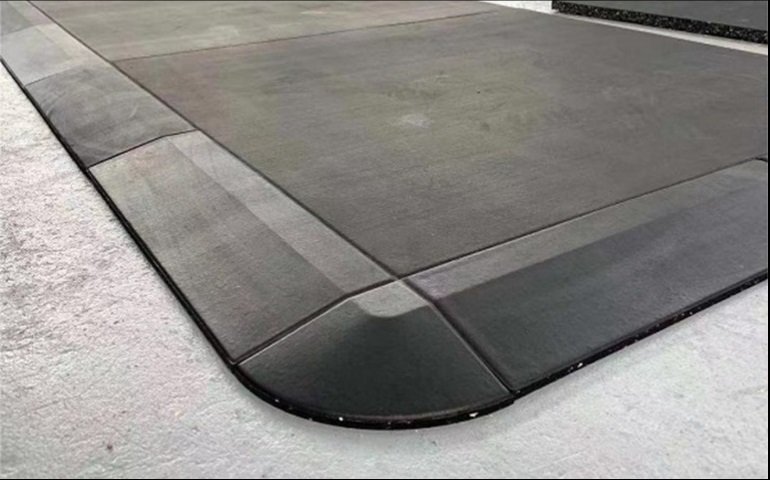

To complete your flooring setup, we offer an optional Edge & Corner System. This accessory creates a clean, raised transition between the tiled area and the adjacent floor, delivering both a safe edge and a polished look.
• Edge dimensions: 50x15cm, available in 20mm, 25mm, or 30mm thickness
• Corner dimensions: 15x15cm, available in 20mm, 25mm, or 30mm thickness
Product Highlights:
• Glue-Free Assembly with Square Connectors: Enables easy DIY installation and future layout changes without the need for adhesive.
• Built-In Cable Management: Features raised round or rectangular bumps that discreetly hide fitness equipment wiring beneath the tile surface.
• Superior Comfort & Shock Absorption: The distinctive waffle-patterned underside offers enhanced padding and impact resistance during exercise.
• Stable Floating Floor System: Interlocking tiles form a secure, continuous surface that remains firmly in place even under heavy use.
• Reusable & Relocatable: Tiles can be taken apart and reinstalled multiple times, making them ideal for temporary setups or future floor expansions.
• Easy-Clean Surface: Simple to wipe down and maintain, delivering lasting performance with minimal effort.
Size
50x50cm
Thickness
20mm, 25mm, 30mm
Color
Black, 15% Colored Flecks
Material
Recycle rubber & EPDM with PU glue
Density for toplayer
1100 kg/m3
Density for base
800-900 kg/m3
Size tolerance
+/- 1%
Fire Rating
EN 13501-1:2018 – Class Efl
Each pallet is packaged with protective corners, plastic wrap, a wooden top board, and tape, and is clearly labeled with the product name, specifications, and quantity.
For secure container loading, we use protective airbags and straps to prevent movement and damage, ensuring your goods arrive in perfect condition.
Is installation easy? Does it require professional installation?
Very simple, typically DIY-friendly. Quick assembly without glue. No professional installation is required.
How to clean and maintain?
Vacuum or wipe with a damp cloth regularly. Sweat marks can be removed using a diluted neutral pH cleaner. Avoid strong acids or alkalis.
Do these rubber tiles smell?
Unlike some flooring materials with strong odors, our rubber tiles are manufactured from high-quality materials and have a very low smell. Any slight odor will dissipate significantly after a few days of ventilation following installation and is not harmful.
Can you customize sizes, colors, logos, or packaging?
Yes, we support customization of dimensions, colors, surface logos, and packaging. The MOQ will be determined based on your specific requirements.
Why might the dimensions of rubber tiles vary slightly between summer and winter?
Rubber naturally expands and contracts with temperature changes. Tiles may expand a bit in hot summer weather and contract during cold winter months. This is a normal characteristic, and it is accommodated by leaving proper expansion gaps during installation.
