Preferred option for high-end gyms. Featuring a glue-free installation process that supports DIY setup and the ability to reuse the tiles, it combines convenience with long-term durability. The high-density rubber foundation offers rock-solid stability. The top layer is coated with a laminated PVC surface that is fire-resistant, free of odors, visually appealing, and made to last.
• Made from recycled rubber and PVC bonded with PU glue
• Available sizes: 50cm x 50cm (approx. 20" x 20") and 1m x 1m (approx. 40" x 40")
• 20mm thickness – recommended for light-traffic residential spaces
• 25mm and 30mm thickness – recommended for medium-traffic commercial settings
Our PVC Topped Gym Floor Connector Tile is the top choice for premium gyms. It keeps the glue-free installation and shock-absorbing waffle back pattern found in previous designs, while upgrading to a PVC top layer that is more durable, odorless, and easy to clean. Two elegant patterns are available—wood grain and marble grain—to meet a variety of design preferences.

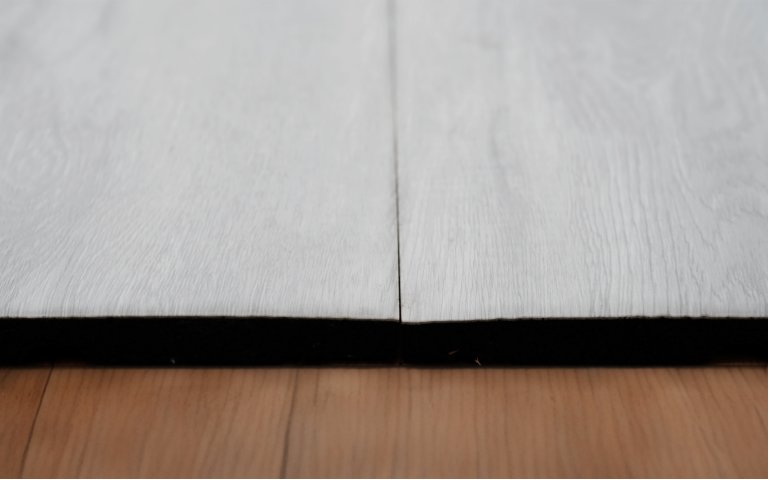

Made from recycled rubber and PVC bonded with PU glue, the tile features a two-layer construction: a sturdy rubber granule base laminated with a premium PVC surface. The innovative waffle back not only improves impact absorption but also creates channels that discreetly hide equipment wiring, resulting in a clean and professional look.

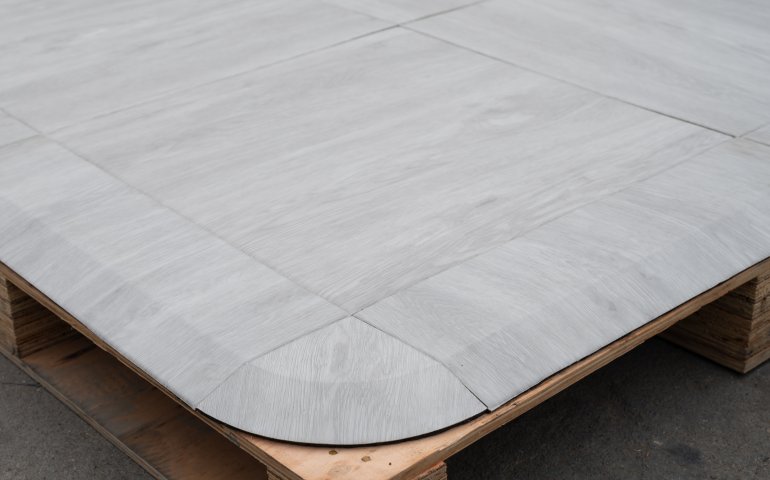

To further enhance both safety and aesthetics, we offer an Edge & Corner System. It creates a defined, raised border that transitions smoothly from the tile surface to the subfloor, giving the entire floor a cohesive, finished appearance.
Edge size: 50cm x 15cm, available in 20mm, 25mm, and 30mm thicknesses
Corner size: 15cm x 15cm, available in 20mm, 25mm, and 30mm thicknesses
Key Product Features:
Elegant & Long-Lasting Surface: The top layer is made of fused PVC, available in refined wood and marble grain patterns. It is fire-resistant, free of odor, and built to keep its good looks even with heavy traffic.

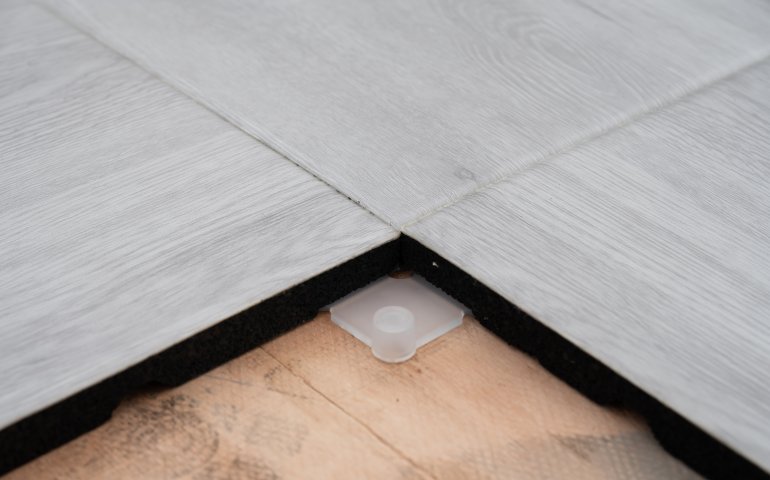

Glue-Free Connector Assembly: Square connectors allow for simple, adhesive-free installation. This enables fast DIY setup and easy rearrangement of the layout in the future.

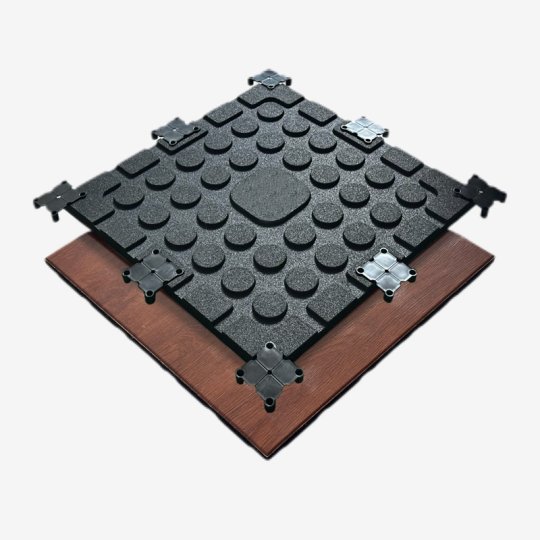

Enhanced Comfort Design: The distinctive waffle pattern on the underside offers extra cushioning and shock absorption during exercise.
Stable Floating Floor System: The interlocking tiles form a secure, seamless surface that remains firmly in place while in use.
Reusable & Relocatable: These tiles can be taken apart and reinstalled multiple times, making them ideal for temporary spaces or future expansions.
Low-Maintenance Surface: The surface is easy to wipe clean and maintain, delivering reliable performance over time with little upkeep.
Size
50x50cm and 1x1m
Thickness
20mm, 25mm, 30mm
Color
Brown Wood/Light Wood/Grey Wood/Retro Wood/Gray Stone Grain
Material
Recycle rubber & PVC with PU glue
Size tolerance
+/- 1%
Fire Rating
EN 13501-1:2018 – Class Efl
Each pallet is packaged with protective corners, plastic wrap, a wooden top board, and tape, and is clearly labeled with the product name, specifications, and quantity.
For secure container loading, we use protective airbags and straps to prevent movement and damage, ensuring your goods arrive in perfect condition.
Is installation difficult? Do I need to hire a professional?
Not at all. It's very straightforward and generally suitable for DIY. The pieces connect quickly without any glue, so no professional help is needed.
How should I clean and care for the tiles?
Regularly use a vacuum or wipe them down with a damp cloth. Sweat stains can be cleaned using a mild neutral pH cleaner. Stay away from strong acids or alkalis.
Do these rubber tiles have a smell?
Unlike some flooring products that emit strong odors, our rubber tiles are made from high-quality materials and have very little smell. Any slight odor will mostly go away after a few days of airing out following installation, and it poses no health risk.
Is it possible to customize the size, color, logo, or packaging?
Yes, we offer customization for dimensions, colors, surface logos, and packaging. The minimum order quantity will be determined based on your specific needs.
Why do rubber tile sizes change a little between summer and winter?
Rubber naturally expands in heat and shrinks in cold. The tiles may get slightly larger in hot summer weather and smaller in cold winter conditions. This is a normal behavior of the material, and it's handled by leaving proper expansion gaps during installation.
