A smart pick for today's fitness facilities. Featuring glue-free installation that enables DIY setup and repeated relocation, this flooring solution combines everyday convenience with long-term durability. It performs excellently in free weight zones, functional training areas, boutique studios, and personal training rooms, while also ranking as the number one choice for home gyms.
• Recycled rubber and EPDM bonded with PU glue
• 100cm x 50cm (Approx. 40" x 20")
•20mm – Best for residential areas with light foot traffic
•25mm – Suited for commercial spaces with moderate traffic
• 30mm – Designed for heavy-duty usage or safety-critical zones
Our Connector Tile changes the game for rubber flooring in contemporary gym environments. No adhesive is needed during installation—just use the square connectors to lock each tile firmly in place. This makes it a great fit for most gym settings, supporting straightforward DIY setup, easy layout changes, and hassle-free removal when needed.

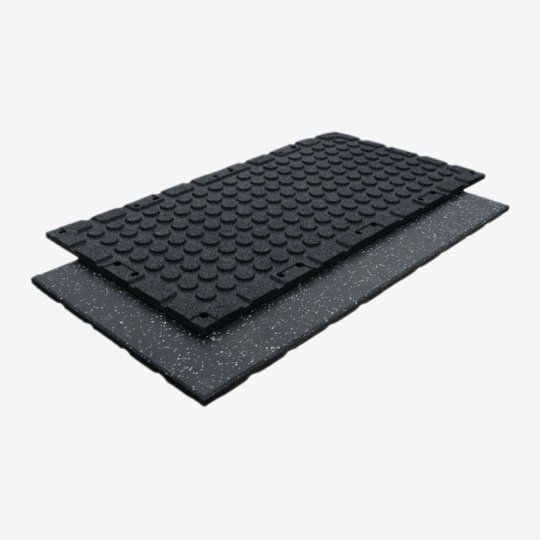

The tile is constructed from recycled rubber and EPDM, with the amount of EPDM varying based on the chosen colour pattern. As a next-generation version of laminated rubber flooring, it maintains a two-layer structure: a durable, wear-resistant top layer bonded to a rubber granule base. The distinctive waffle design on the underside boosts shock absorption, while the raised humps on the surface help keep equipment wiring neatly tucked away.

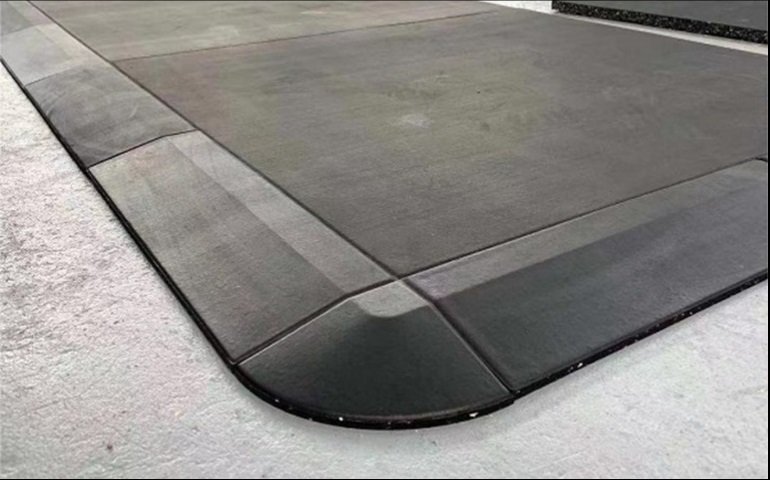

To round out your flooring project, we offer an optional Edge & Corner System. This add-on provides a clean, slightly raised border between the tiled area and the adjacent floor, delivering both a safer edge and a polished, professional look.
• Edge dimensions: 50 x 15 cm, available in 20 mm, 25 mm, or 30 mm thicknesses
• Corner dimensions: 15 x 15 cm, available in 20 mm, 25 mm, or 30 mm thicknesses
Product Highlights:
• No Glue Required – Square Connector System: Uses square connectors to enable simple, adhesive-free assembly, allowing for fast DIY installation and easy layout changes down the road.
• Hidden Wire Management: Built with raised round or rectangular bumps that discreetly tuck fitness equipment cables underneath the tile surface.
• Extra Cushioning for Workouts: A one-of-a-kind waffle pattern on the underside delivers better padding and impact absorption during exercise.
•Floating Floor That Stays Locked: The interlocking design forms a stable, seamless surface that remains firmly in place even under heavy use.
• Take Apart & Reuse: These tiles can be disassembled and reinstalled repeatedly, making them ideal for short-term setups or later floor expansions.
• Minimal Cleaning Required: The surface is simple to wipe down and care for, providing lasting durability with very little maintenance effort.
Size
100x50cm
Thickness
20mm, 25mm, 30mm
Color
Black, 15% Colored Flecks
Material
Recycle rubber & EPDM with PU glue
Density for toplayer
1100 kg/m3
Density for base
800-900 kg/m3
Size tolerance
+/- 1%
Fire Rating
EN 13501-1:2018 – Class Efl
Each pallet is packaged with protective corners, plastic wrap, a wooden top board, and tape, and is clearly labeled with the product name, specifications, and quantity.
For secure container loading, we use protective airbags and straps to prevent movement and damage, ensuring your goods arrive in perfect condition.
Is installation easy? Does it require professional installation?
Yes, it's very straightforward and well-suited for DIY. No glue is needed for quick assembly, and you don't need to hire a professional.
How to clean and maintain?
Regularly vacuum or wipe the surface with a damp cloth. Sweat stains can be cleaned using a diluted neutral pH cleaner. Avoid strong acids and alkalis.
Do these rubber tiles smell?
Unlike certain flooring products that give off strong odors, our rubber tiles are made from premium materials and have very little smell. Any mild odor will largely fade after a few days of airing out once installed, and it poses no health risk.
Can you customize sizes, colors, logos, or packaging?
Yes, we offer customization for dimensions, colors, surface logos, and packaging. The minimum order quantity will be determined according to your specific needs.
Why might the dimensions of rubber tiles vary slightly between summer and winter?
Rubber naturally expands in hot weather and contracts when temperatures drop. As a result, tiles may become slightly larger in summer and smaller in winter. This is a normal behavior of rubber, and it can be managed by leaving sufficient expansion gaps during installation.
