The Fishbone pattern is a specialized, directional anti-slip design. Unlike the multi-directional diamond checker plate, the fishbone pattern features a repeating "V" or chevron shape that channels liquids and provides excellent forward/backward traction, making it ideal for specific environments where directional movement is common.
• Fishbone pattern
• Recycle rubber
• 3-8mm Thickness
• 0.5-1.5m Width
• 10-20m Length per roll
• Customized size available

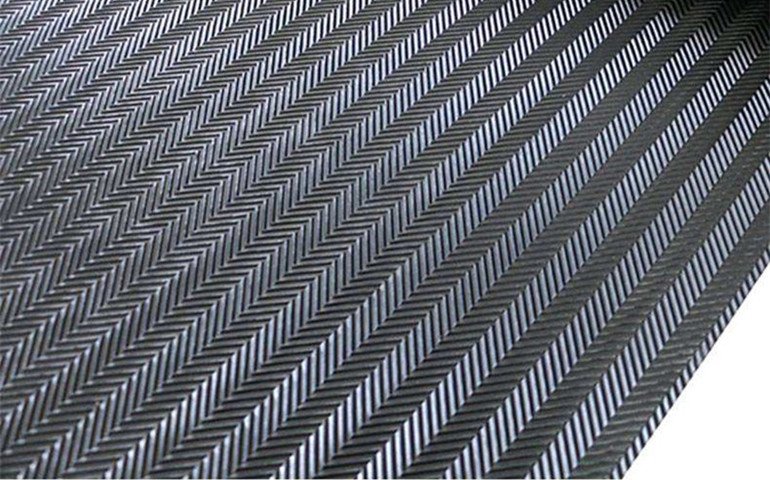

The fishbone rubber mat, also known as herringbone or chevron pattern flooring, is a purpose-engineered anti-slip solution designed for directional high-traffic areas where controlled movement, efficient drainage, and underfoot comfort are prioritized.
Unlike the multi-directional diamond/checker plate, the Fishbone pattern features a repeating V-shaped or arrowhead design that channels liquids away from the walking path and provides optimized grip for forward and backward motion. This makes it ideal for corridors, walkways, ramps, and lanes where foot or wheeled traffic follows a predictable flow.
Ideal Use Cases
Warehouses & Factories: Along assembly lines, packing lanes, and designated walkways.
Commercial & Public Buildings: Entrances, ramps, hallways, and stair treads.
Food & Beverage Facilities: Processing areas, kitchens, and washdown zones where drainage is critical.
Recreation & Fitness: Gym cardio zones, pool decks, locker rooms.
Agricultural & Stables: Livestock pathways, milking parlors, tractor aisles.
Marine: Boat decks, marina walkways, and docks.
Product Highlights:
Advanced Pattern Engineering: Strategic V-shaped grooves optimize traction for straight-line movement, enhancing safety in corridors and walkways.
Fluid-Dynamic Channels: Angled pattern actively channels liquids, oils, and debris laterally off the walking surface, reducing hydroplaning risks.
Visual Flow Guidance: Pattern naturally directs pedestrian and cart traffic, improving spatial organization in high-movement areas.
Enhanced Safety Performance: make sure it is no slip even when contaminated with water, oils, or light greases.
Edge Beveling: Most sheets feature tapered edges to prevent tripping hazards and facilitate seamless roll-to-roll installation.
Durability & Structural Integrity: Formulated with reinforced polymers for exceptional tear strength and dimensional stability.
Abrasion-Resistant Surface: Withstands repeated foot and wheel traffic without significant pattern wear or surface degradation.

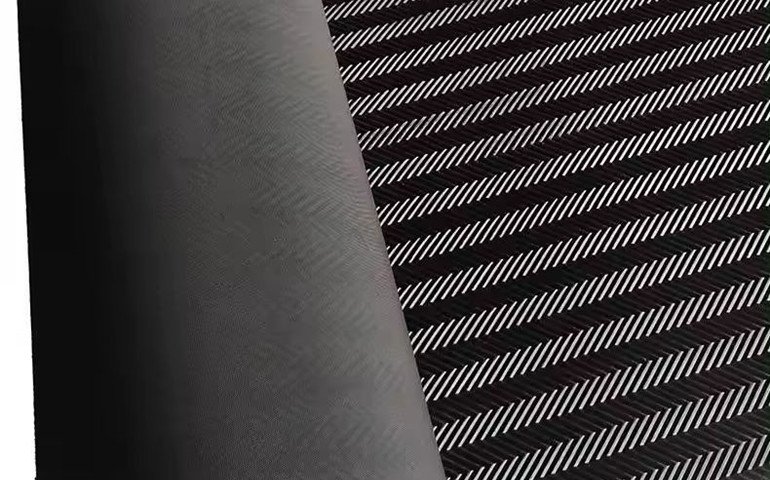

Fishbone pattern

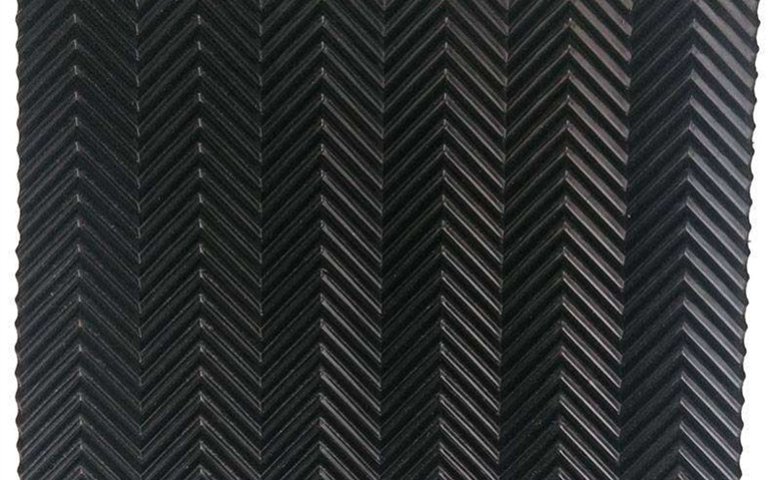

Recycled rubber
Material
Recycle Rubber
Thickness
3mm~8mm
Width
0.5m~1.5m
Roll Length
10m~20m
Hardness
65 ± 5 Shore A
Tensile Strength
3 MPa
Elongation
≥ 200%
Each roll is individually wrapped in a clear plastic film to prevent the surfaces from sticking together during storage and transport.
Each pallet is packaged with protective corners, plastic wrap, a wooden top board, and tape, and is clearly labeled with the product name, specifications, and quantity.
Where is it most commonly used?
Ideal for warehouse aisles, factory walkways, food processing corridors, loading docks, gym tracks, and marine walkways, anywhere with defined pedestrian traffic flow and potential liquid exposure.
How do I clean and maintain it?
Simple daily sweeping and occasional damp mopping with pH-neutral cleaner is sufficient. For deep cleaning, low-pressure washing (below 1500 PSI) with a fan tip is effective. Avoid steam cleaning or harsh chemical strippers.
Is it resistant to chemicals and oils?
The rubber formulation resists oils, greases, alkalis, and mild acids commonly found in industrial settings. However, prolonged exposure to strong solvents or undiluted acids may cause damage.
Will the color fade?
Black sheets show virtually no fading. Colored versions (gray, red, etc.) are UV-stabilized but may experience some fading in direct sunlight over years. For outdoor use, specify UV-resistant formulation.
