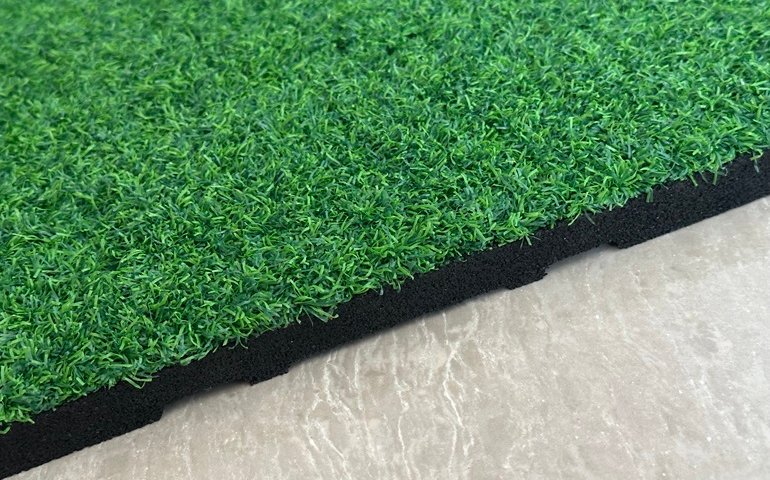

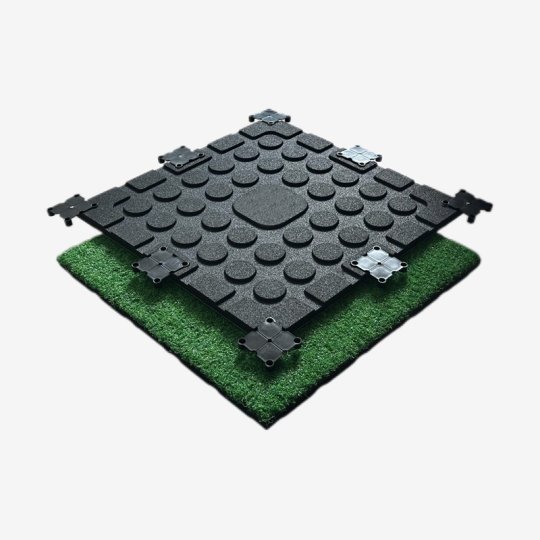

Designed for functional training areas and sled training tracks. These tiles feature a glue-free, DIY-friendly construction, making them simple to install, reusable, and long-lasting. Each tile combines a laminated 12mm curved artificial turf top layer with a high-density rubber bottom layer for exceptional durability and stability.
• Recycled rubber, PE & SBR bonded with PU glue
• 1m x 1m (approx. 40" x 40")
• 12mm + 15mm thickness suitable for light-traffic residential areas
• 12mm + 20mm thickness and 12mm + 25mm thickness suitable for medium-traffic commercial areas

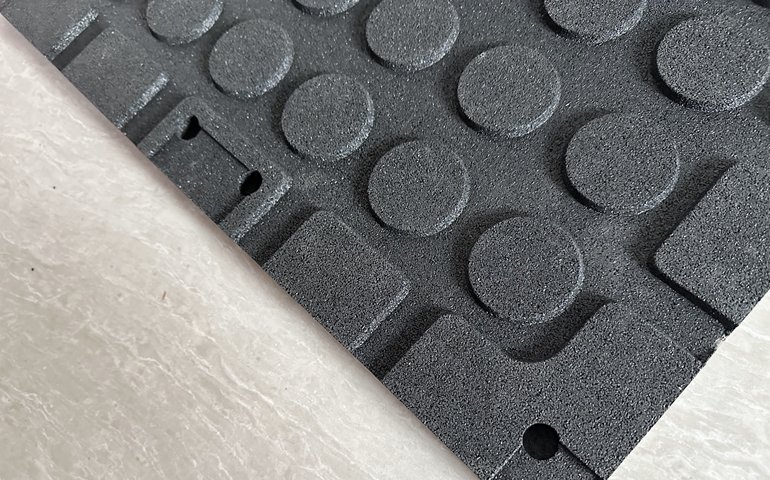

Designed specifically for functional training areas and sled tracks, our Artificial Grass Rubber Topped Tiles with Connectors delivers outstanding performance. The 12mm curved artificial turf surface enhances grip, while the rear's special waffle pattern—an air-cavity structure—boosts shock absorption. Rather than relying on glue, we fuse the turf to the rubber base during vulcanization, which improves durability and eliminates any odor from adhesives. Multiple color options are available: mixed green, black, gray, dark blue, blue, red, and yellow.
Artificial Turf Specs:
- Pile height: approx. 12 mm
- Stitch density: 63,000 per m²
- Gauge: 3/16 inch
- Yarn Dtex: 5,000
Installation Method:

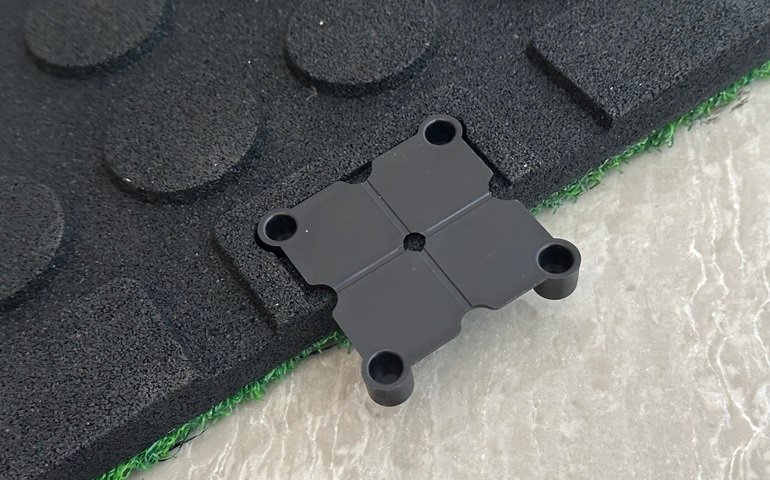

Connector-based assembly — square connectors lock the tiles securely together. This approach is ideal for most gyms and fitness spaces, supporting straightforward DIY installation, easy layout changes, and trouble-free removal when needed.
Key Benefits:
• Grass-like realistic surface offers natural looks and practical traction
• Integrated drainage channels stop water from collecting, keeping the surface dry
• Rubber base protects the underlying waterproof membrane from damage
• Comfortable yet stable walking surface with good balance and stability
• Loose interlocking system allows quick, glue-free assembly with no tools required
• Rapid, uncomplicated installation cuts down on time and labor costs
• Low-maintenance and easy to clean — dirt does not build up easily; just hose or sweep
Size
1x1m
Base Thickness
15mm, 20mm, 25mm
Yarn Type
Curved Pile
Pile Height
Approx. 12mm
Yarn Dtex
5,000 D
Gauge
3/16 inch
Density for Pile
63,000 stitches/m2
Color
Mixed Green, Black, Red, Yellow, Grey, Dark Grey, Blue, Dark Blue
Material
Recycle rubber & PE & SBR with PU glue
Size tolerance
+/- 1%
Each pallet is packaged with protective corners, plastic wrap, a wooden top board, and tape, and is clearly labeled with the product name, specifications, and quantity.
For secure container loading, we use protective airbags and straps to prevent movement and damage, ensuring your goods arrive in perfect condition.
Is the artificial turf glued to the rubber mat?
No. The turf is bonded directly to the rubber tile during the manufacturing process, which prevents the turf from peeling off in whole sheets.
Is installation easy? Does it require professional help?
Very easy. The installation is DIY-friendly, requiring no glue and allowing for quick assembly. No professional installation is needed.
Do these tiles emit any odor?
No unpleasant odors. Unlike low-quality alternatives, our product is safe for indoor use without any smell concerns.
Can I request custom sizes, colors, logos, or packaging?
Yes. Customization of dimensions, colors, logos on the surface, and packaging is available. The MOQ will be calculated according to your specific requirements.
Why do rubber tile dimensions change slightly between summer and winter?
Rubber material naturally expands in heat and contracts in cold. As a result, tiles may be slightly larger in hot summer and smaller in cold winter. This is a normal physical characteristic and is accommodated by leaving proper expansion gaps during installation.
