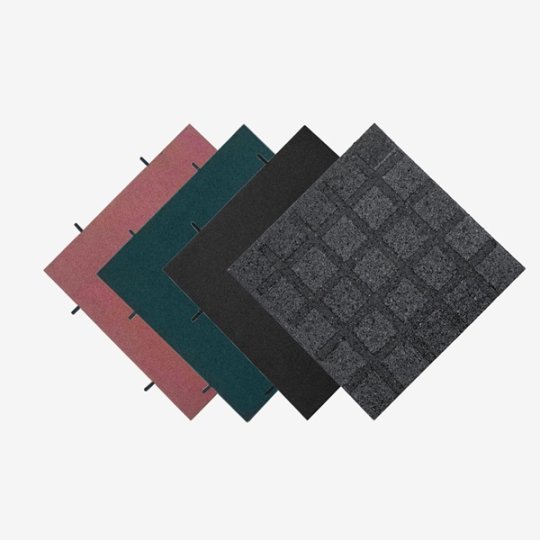

Engineered with a channeled underside, this tile offers enhanced shock absorption and flexibility. The grooves allow the tile to compress more effectively, providing superior cushioning and joint protection for high-impact activities. It is an excellent choice for dedicated outdoor workout zones, calisthenics areas, and under playground equipment, while also promoting subsurface drainage.
• Recycle rubber with PU glue
• 50cm x 50cm dimensions
• 25mm = Medium-traffic commercial areas
• 30mm & 40mm = Heavy-duty/safety areas, can be installed with connector pins
• Black, Green, Red
Different from ordinary flat-bottom rubber tiles, the specially engineered bottom groove structure creates continuous hollow channels between the tile and the ground, enabling fast full-permeability drainage and effective air circulation. This professional design completely solves common outdoor problems such as standing water, slippery surfaces, mold growth and floor rotting after rain.
Made of high-density recycled SBR rubber, these grooved base playground tiles offer excellent shock absorption and fall protection performance. The grooved bottom enhances overall cushioning flexibility, effectively softening falls and minimizing injury risks for kids, fully meeting international playground safety standards. The textured top surface provides reliable anti-slip performance even in wet conditions, ensuring safe playing in all weather.
Product Highlights:
Unique Grooved Base Drainage Design – Precision bottom groove channels create efficient water flow gaps, allowing rapid rainwater drainage and zero water accumulation after rainfall.
Enhanced Shock Absorption & Fall Safety – Groove hollow structure optimizes buffer performance, effectively absorbing falling impact and protecting children from injury.
Eco-Friendly & Non-Toxic Material – Made of recycled rubber, odor-free and child-friendly.
Low Maintenance & Long Service Life – Dirt-resistant, easy to clean, no complex upkeep required for high-traffic playgrounds.
Coarse rubber granules channel-backed design
Fine rubber granules texture

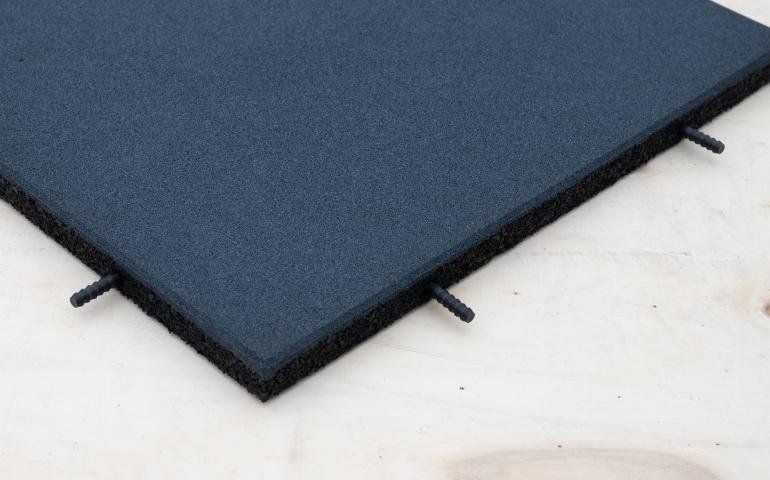

30mm and above can be installed with connector pins
Size
50x50cm
Thickness
25mm, 30mm, 40mm
Color
Black, Red, Green
Material
Recycle rubber with PU glue
Density
800-900 kg/m3
Length Tolerance
+/- 1%
Fire Rating
EN 13501-1:2018 – Class Efl
Each pallet is packaged with protective corners, plastic wrap, a wooden top board, and tape, and is clearly labeled with the product name, specifications, and quantity.
For secure container loading, we use protective airbags and straps to prevent movement and damage, ensuring your goods arrive in perfect condition.
Is installation easy? Does it require professional installation?
Relatively easy. Typically installed using adhesive or connector pins (for thicker tiles). A professional installer is recommended to ensure proper drainage.
How to clean and maintain?
Regular sweeping or rinsing with water is sufficient. Stubborn stains can be cleaned with a mild detergent and a soft brush.
Do these rubber tiles smell?
Unlike some flooring materials with strong smells, our rubber tiles are produced with high-quality materials and have a very low odor. The smell will dissipate significantly after a few days of ventilation post-installation and is not harmful.
